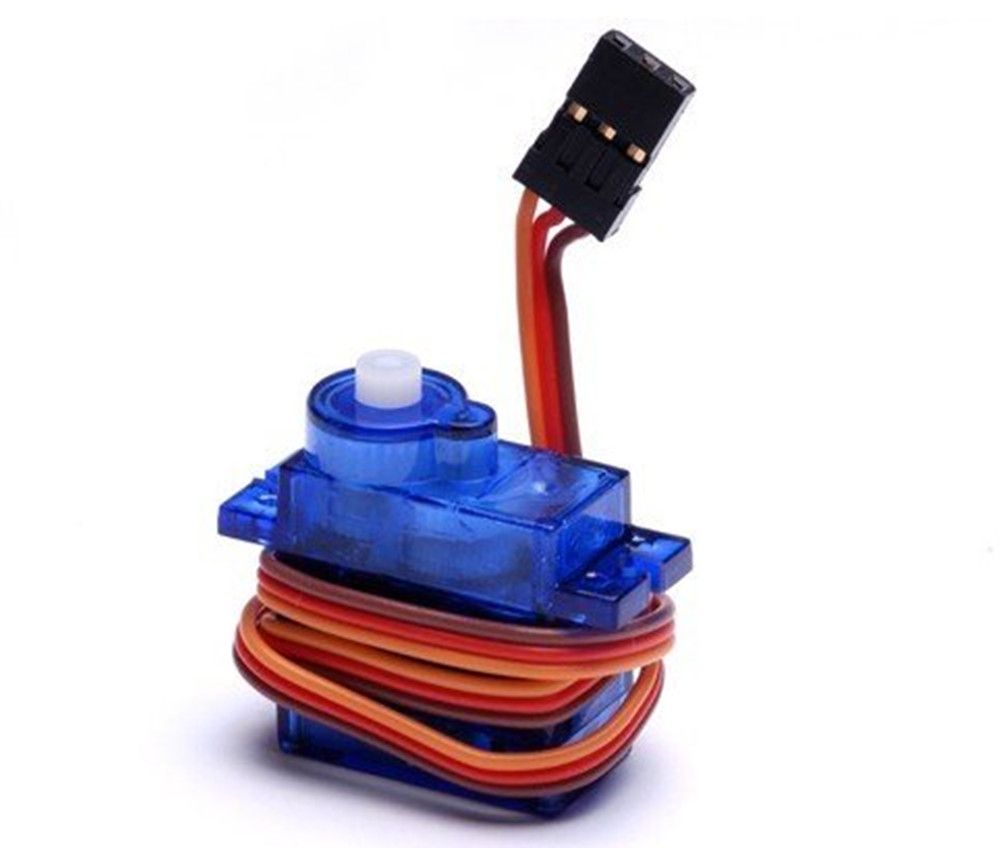

Feetech Analog Plastic Gears 9g Micro 180 Degrees Rotation Servo
Feetech Analog Plastic Gears 9G Micro 180 Degrees Rotation Servo Specifications1) Servo2) CE&ROHS standard3) ODM&OEM welcome FITECMODELSIZE(mm)WEIGHTSPEEDStall Torque SKU(LxWxH)gozsec/60°kg.cmoz.in FS90 23.2 × 12.5 × 22 mm90.320.12(4.8V)0.10(6V)1.3(4.8V)1.5......
Send Inquiry
Product Description
Feetech Analog Plastic Gears 9G Micro 180 Degrees Rotation Servo
Specifications
1) Servo
2) CE&ROHS standard
3) ODM&OEM welcome

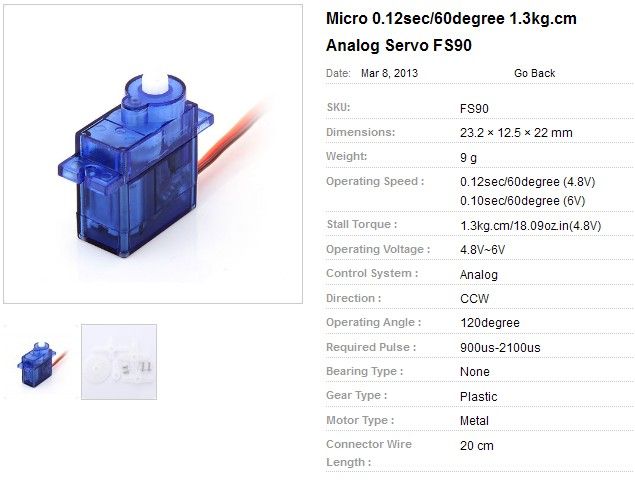

FITEC | SIZE | WEIGHT | SPEED | Stall Torque | |||
SKU | (LxWxH) | g | oz | sec/60° | kg.cm | oz.in | |
FS90 | 23.2 × 12.5 × 22 mm | 9 | 0.32 | 0.12(4.8V) | 1.3(4.8V) | 18.09(4.8V) | |
Operating Voltage :4.8V~6V
Control System :Analog
Direction :CCW
Operating Angle :120degree
Required Pulse :900us-2100us
Bearing Type :None
Gear Type :Plastic
Motor Type :Metal
Connector Wire Length :20 cm

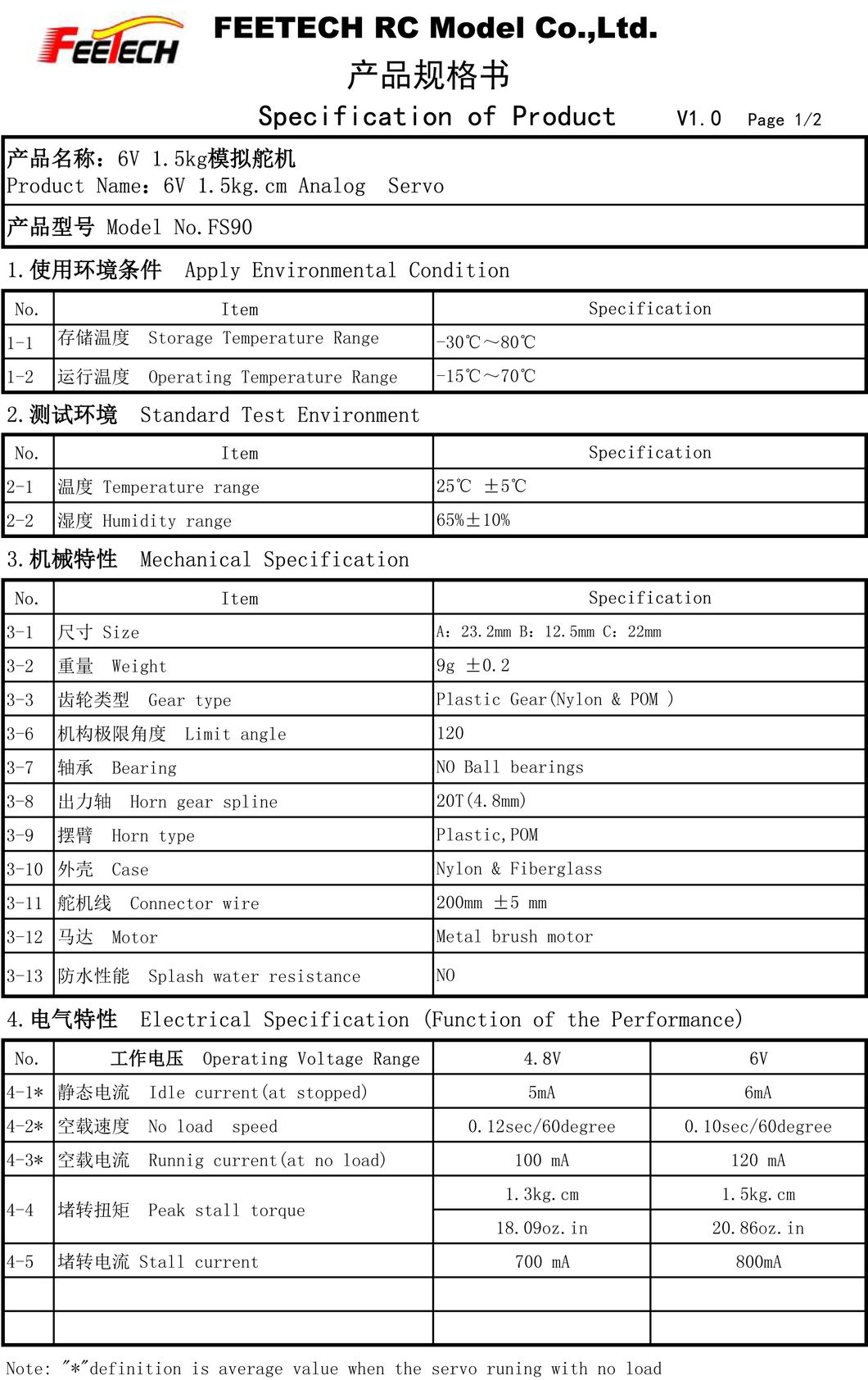

| Mechanical Specification | |||
| No. | Item | Specification | |
| 1 | Size | A:23.2mm B:12.5mm C:22mm | |
| 2 | Weight | 9g ±0.2 | |
| 3 | Gear type | Plastic Gear(Nylon & POM ) | |
| 4 | Limit angle | NO limit | |
| 5 | Bearing | NO Ball bearings | |
| 6 | Horn gear spline | 20T(4.8mm) | |
| 7 | Horn type | Plastic,POM | |
| 8 | Case | Nylon & Fiberglass | |
| 9 | Connector wire | 240mm ±5 mm + 3pin JR Male connector | |
| 10 | Motor | Metal brush motor | |
| 11 | Splash water resistance | NO | |

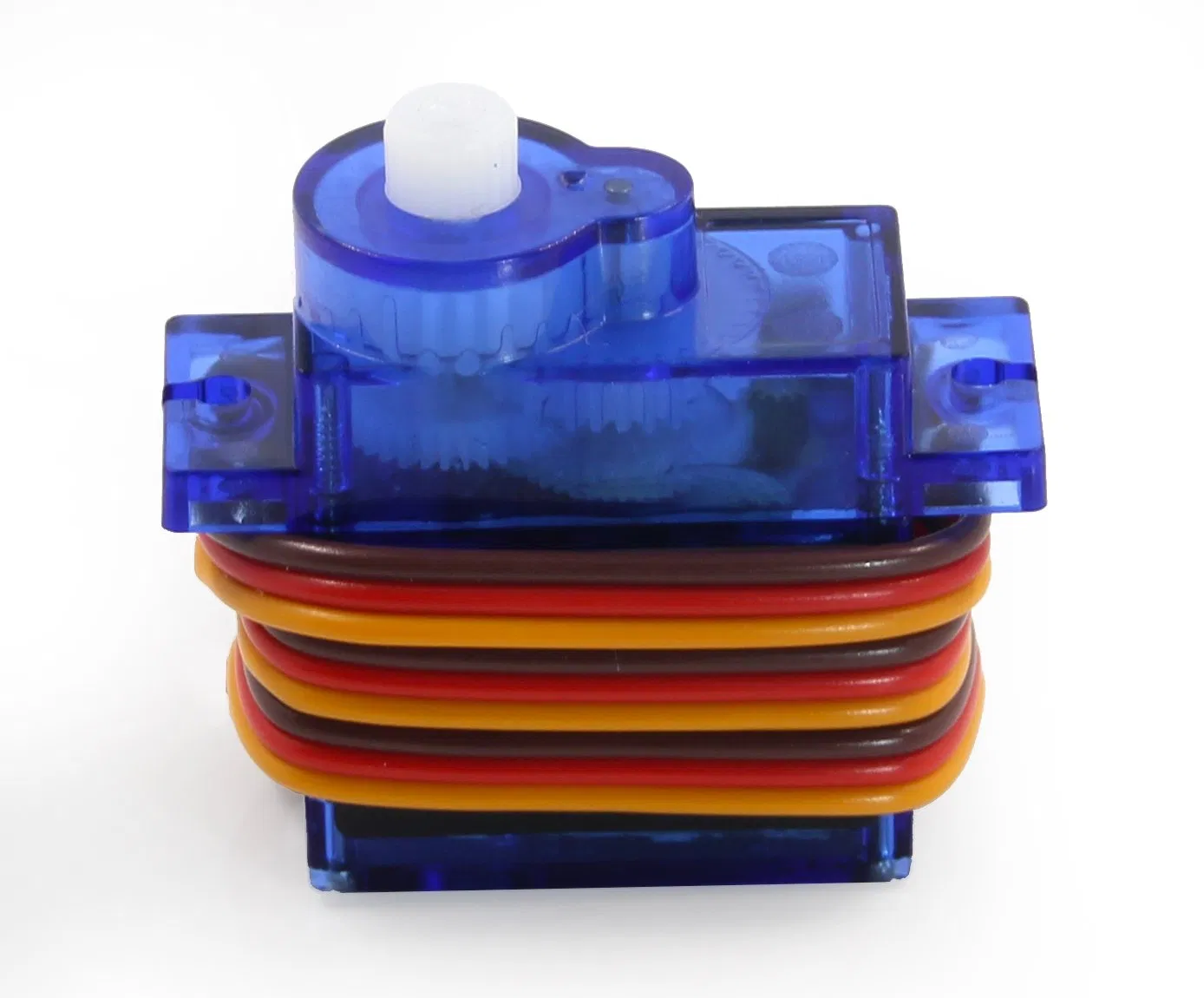

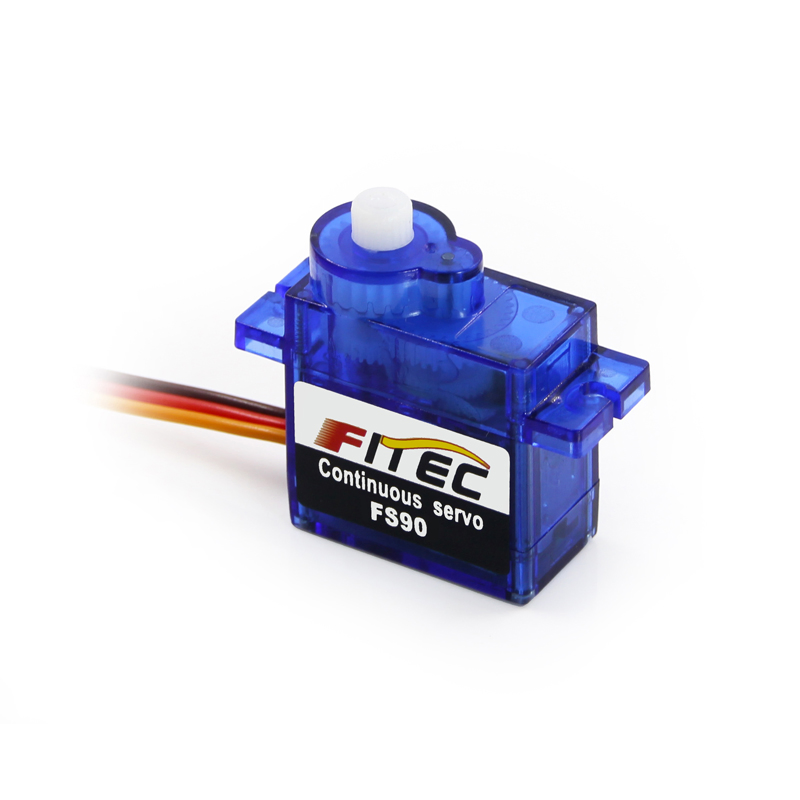

Picture:
MAY WE ALSO SUGGEST...

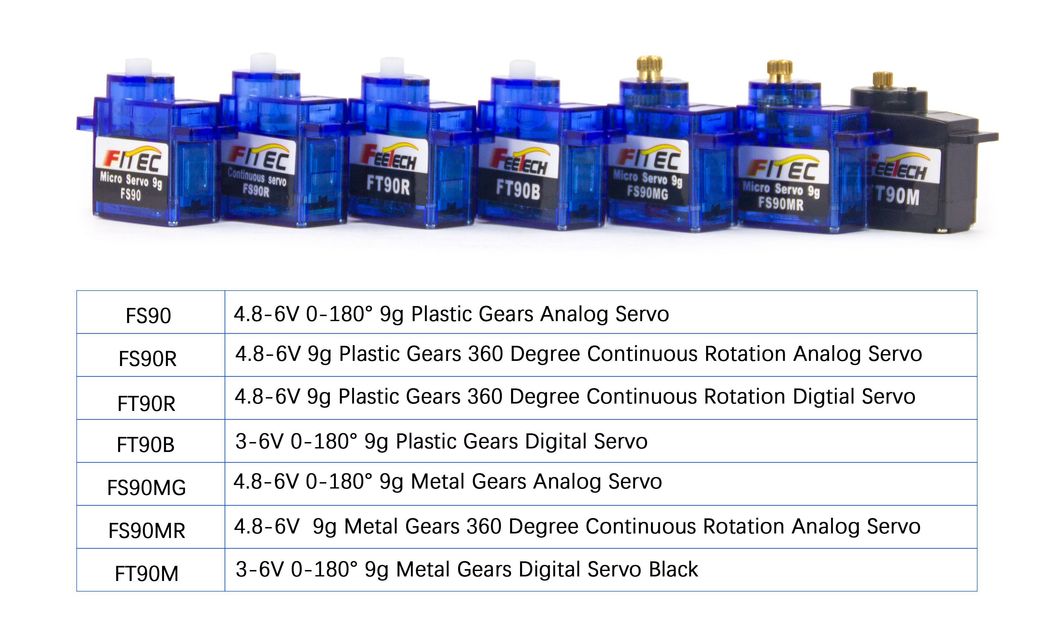

FS90R Related Items
Packing:

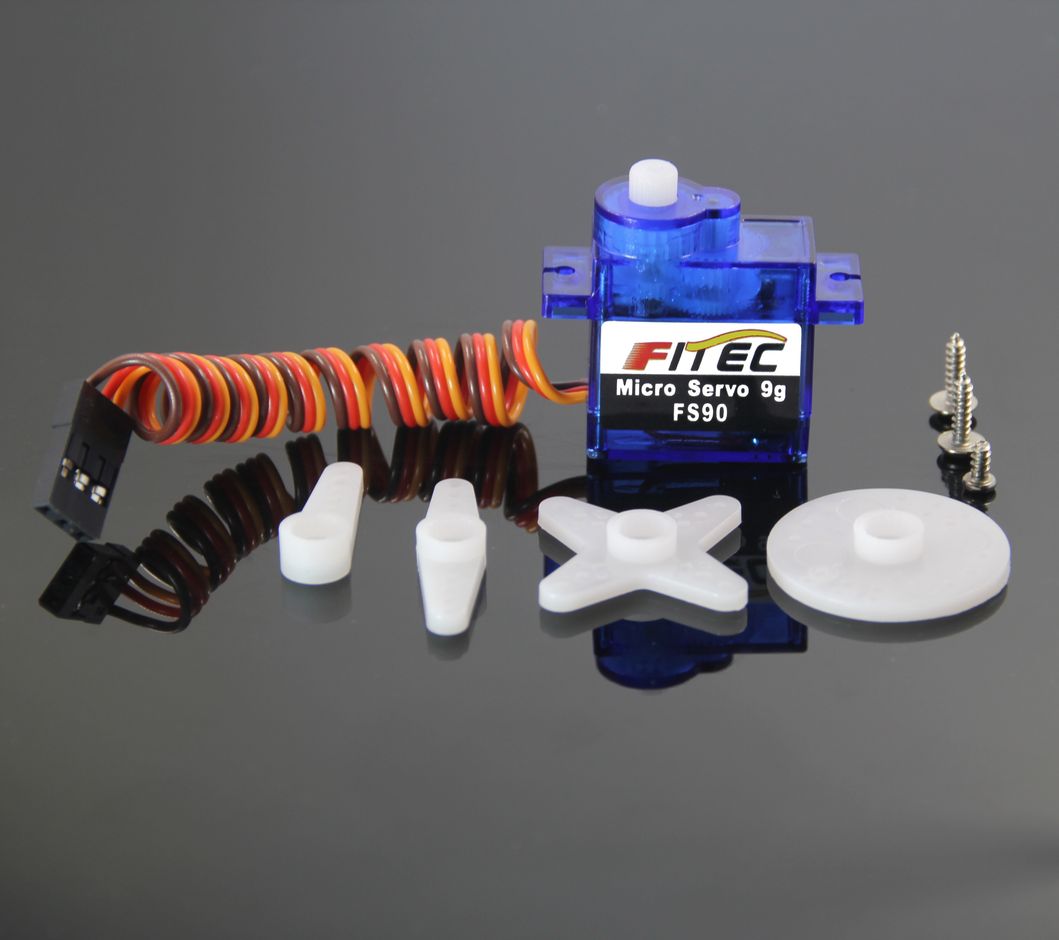

-PE bag (A servo + accessory)
