              Digital Servo Feetech FT835bl 30kg RC Brushless Digital Hv Standard Servo
              • Digital Servo Feetech FT835bl 30kg RC Brushless Digital Hv Standard ServoDigital Servo Feetech FT835bl 30kg RC Brushless Digital Hv Standard Servo
              • Digital Servo Feetech FT835bl 30kg RC Brushless Digital Hv Standard ServoDigital Servo Feetech FT835bl 30kg RC Brushless Digital Hv Standard Servo
              • Digital Servo Feetech FT835bl 30kg RC Brushless Digital Hv Standard ServoDigital Servo Feetech FT835bl 30kg RC Brushless Digital Hv Standard Servo
              • Digital Servo Feetech FT835bl 30kg RC Brushless Digital Hv Standard ServoDigital Servo Feetech FT835bl 30kg RC Brushless Digital Hv Standard Servo

              Digital Servo Feetech FT835bl 30kg RC Brushless Digital Hv Standard Servo

              digital servo FEETECH FT835BL 30KG rc brushless digital HV standard servo1.digital RC servo Brushless2.30kg torque servo3.brushless motor/Aluminium middle hull4.WaterproofFT835BL is FEETECH High-Speed RC Brushless Digital Servo.We also specialized in ODM and OEMThis is our latest servo. It will redu......

              Send Inquiry

              Product Description

              digital servo FEETECH FT835BL 30KG rc brushless digital HV standard servo

              1.digital RC servo Brushless
              2.30kg torque servo
              3.brushless motor/Aluminium middle hull
              4.Waterproof

              FT835BL is FEETECH High-Speed RC Brushless Digital Servo.

              We also specialized in ODM and OEM

              This is our latest servo. It will reduce the working current when working at stall torque over 10 seconds, that will the best to protect the servo burned off.

              This servo is used in cars, boats, robots or where standard servos are used.

              Features:

              Standard Size Two Ball Bearing High Torque Brushless Digital Servo

              Used 1 million times life potentiometer, high-quality brushless motor.

              Used high-quality anti-interference cable(Like S-Bus Cable)

              Have the waterproof properties.

              Ideal for high torque applications requiring a standard size servo

              Universal connector fits Futaba, Hitec, JR, KO Propo.

              One year warranty

              -Standard digital Titanium gears servo 2BB

              -Blushless motor, Aluminium middle hull

              -Waterproof

              -Operating Voltage: 4.8~6V

              -Dead band width: 2usc

              -Interface: (like JR)

              -Wire length: 30cm



              Specification



              Dead zone: 1 s

              Frequency: 1520 Mus / 330hz

              Maximum pulse width can be supported by 0.5-2.5

              Motor: a sense of brushless motor

              Speed (6.0V): 0.14sec/60
              Speed (7.4V): 0.12sec/60

              Torque (6.0V): 30kg.cm (417.35oz/in)

              Torque (7.4V): 35kg-cm (486.91 oz/in)

              Size: 40.5X20.5X36mm/1.59X0.80X1.43in

              Weight: 72g (2.54oz)

              Line length: JR 300 mm

              Bearing: 2BB

              Locked rotor current (6V) 2.6A

              Locked rotor current (7.4V) 3.0A

              Operating current (6V) 450MA

              Operating current (7.4V) 620MA

              Operating current is the current in the case of constant speed.

              Quiescent current (26MA)




              Pictures:

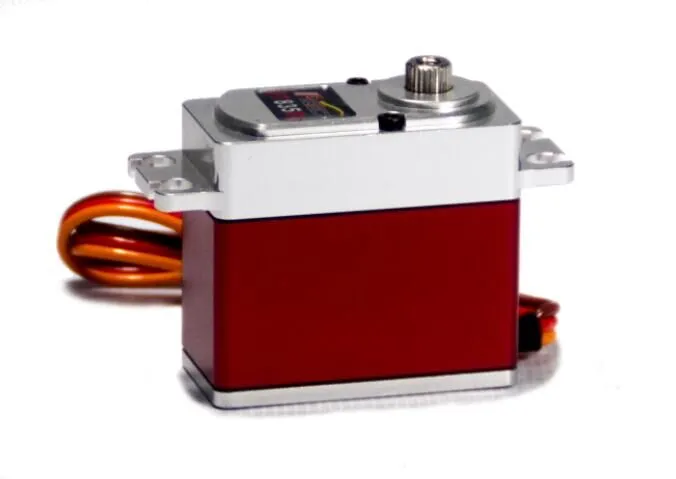

              Digital Servo Feetech FT835bl 30kg RC Brushless Digital Hv Standard Servo
              Digital Servo Feetech FT835bl 30kg RC Brushless Digital Hv Standard Servo
              Digital Servo Feetech FT835bl 30kg RC Brushless Digital Hv Standard Servo




              Digital Servo Feetech FT835bl 30kg RC Brushless Digital Hv Standard Servo
